| MOQ: | 100 पीसी |
| कीमत: | $100-$150 |
| स्टैंडर्ड पैकेजिंग: | निर्यात के लिए विशेषीकृत प्लाई-लकड़ी का बक्सा |
| वितरण अवधि: | 35 दिन |
| भुगतान विधि: | टी/टी, एल/सी |
| आपूर्ति क्षमता: | 3000 पीसी/दिन |

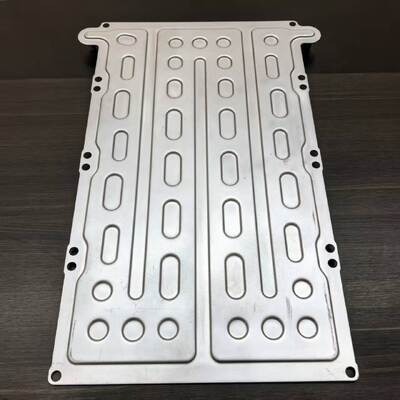

Products introduction:
Product Parameter
| Category | Details |
|---|---|
| Material Selection | Base plate: AL3003MOD (commonly used) Flow channel plate: AL3003MOD (commonly used) Insulation layer: Powder coating or film lamination (commonly used) |
| Key Processes | 1. Stamping forming 2. Degreasing and spraying 3. Brazing 4. Helium leak test 5. Powder coating or film lamination |
| Structural Design | 1. Flow channel plate: 1mm (typical); Base plate: 1mm or 1.2mm (typical); Insulation layer thickness: 0.1~0.3mm 2. Total cold plate height: 5.5~6.5mm; Flow channel height: 3~4mm (typical) 3. Seal width: ≥7mm |
| Performance | 1. High structural strength and pressure resistance 2. Excellent heat dissipation efficiency and temperature uniformity 3. Superior corrosion resistance 4. High space utilization rate |
| Cost | Typically RMB 27~35/kg, with relatively high tooling cost |
| Weight | Significant lightweight advantage: 1+1mm cold plate weighs approx. 5.5kg/m² (calculated by area) |
| Lead Time | High design flexibility and short prototyping cycle |
| Maturity | Most widely adopted process, with >90% market share |
We are a direct manufacturer with two independent vacuum brazing production lines and a two-shift working system. Stable mass production ensures on-time delivery and flexible order fulfillment for global clients.
Supported by an experienced technical team, we provide comprehensive solutions from customized design, structural optimization, sample verification to formal mass production, delivering one-stop services to meet your diverse cooling demands.
Every liquid cooled plate undergoes precise dimensional inspection and 100% air tightness testing. Rigorous quality procedures guarantee leak-proof performance, high stability and long service life for long-term operation.
With more than 15 years of specialized experience in thermal cooling industry, our products have been exported to 56 countries worldwide. We possess mature expertise to serve EV, BESS, data center and industrial cooling projects.
FAQ:
Q: Are you a trading company or manufacturer?
A:Yes,we are a factory with more than 18 years history in this industry.
Q: What is your terms of payment ?
A: Normally 100% T/T In advance,But this is something that can be negotiated.
Q: How long does it take for samples and mass production?
A: Usually it will take 35 days for new moulds and samples ,
after confirmation, 30 days for mass production.
Q:OEM/ODM available?
A:Yes,we can!
Q:Could you provide sample?
A:Yes, We are honored to offer you samples for quality check.
Q:Is sample order accepted?
A:Yes,we accept sample order and we can provide design service!
